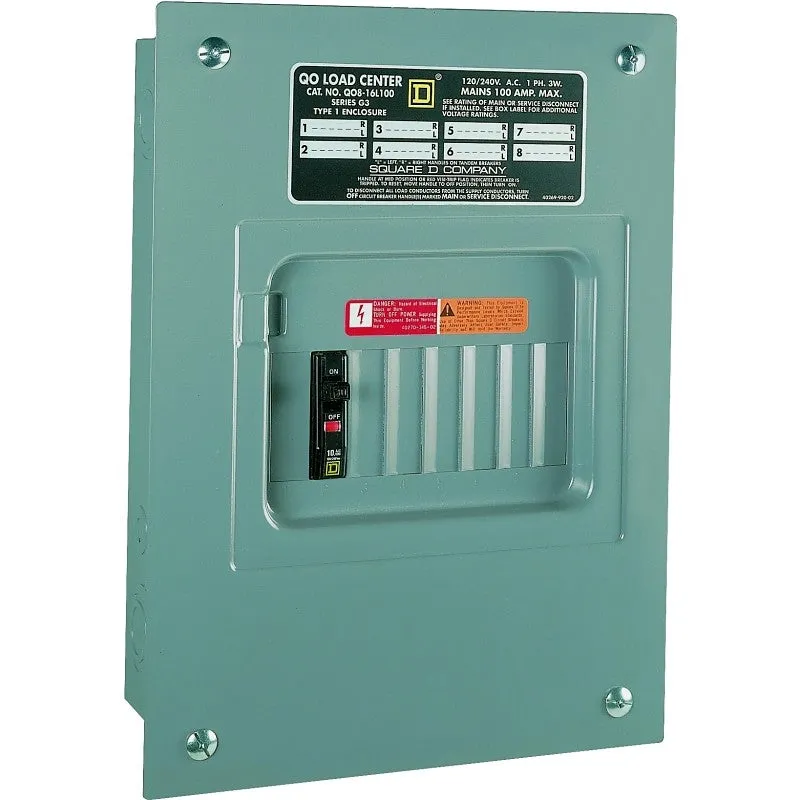

Main lug indoor load center, 100 A, 8 space/16 circuit. 1-1/2 in maximum knockouts in the top and bottom end walls to accommodate overhead or underground feed. The center is rated for a maximum load of 240 V and has a 10,000 SCCR. NEMA type 1. Copper bus for conductivity. Single phase, 3-wire, solid neutral. UL listed.
Product specification\n\n
\n
| Brand | Square D |
|---|---|
| UPC | 085901804759 |
| Model Number | QO816L100FCP |
| Feature | Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable |
| Category | ELECTRICAL |
| Additional Category | Main Lug Load Centers |
| Length | 14.86 |
| Width | 10.48 |
| Height | 4.33 |
| Weight | 7.0 |
