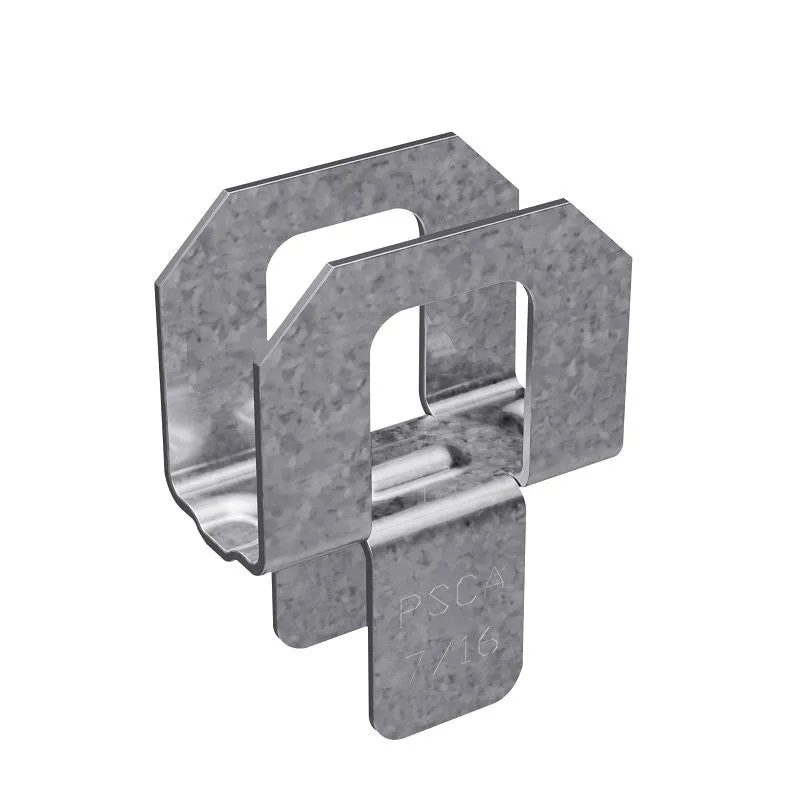

The PSCA is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCA reduces deflection and keeps panels even to maintain a level plane on the structure.
Product specification\n\n
\n
| Brand | Simpson Strong-Tie |
|---|---|
| UPC | 707392780205 |
| Model Number | PSCA 7/16 |
| Feature | For 7/16 in panel thickness |
| Category | HARDWARE |
| Additional Category | Plywood Clips |
| Length | 4.38 |
| Width | 7.81 |
| Height | 10.31 |
| Weight | 4.5 |
