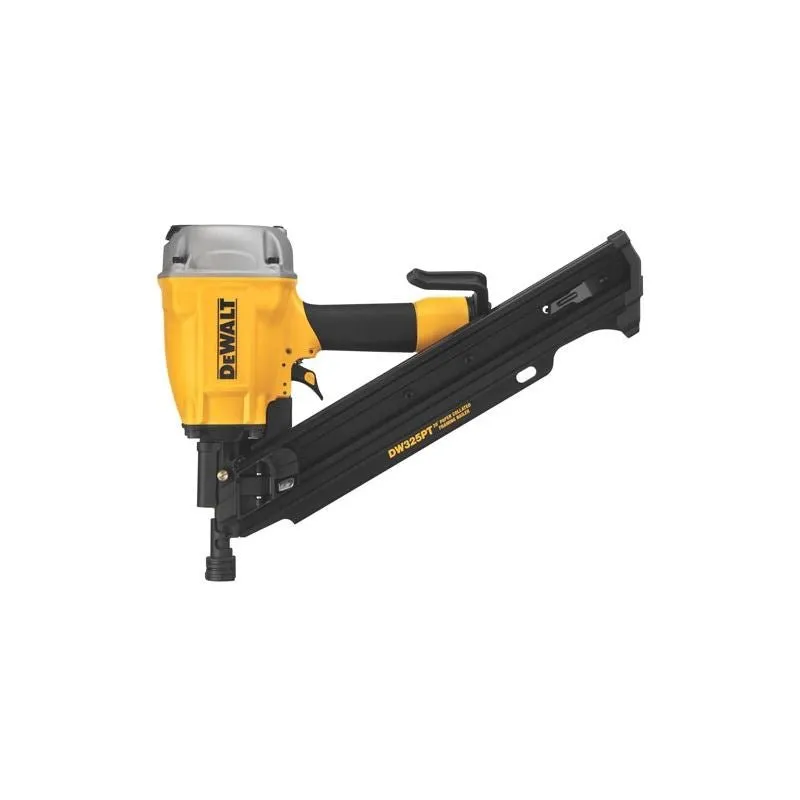

DW325PT Includes:– tool– 1/4″ male air fitting– manual
Specifications
Belt / Rafter Hook true
:Fastener Type / Gauge: 30 degree Paper tape
Collation Type Paper
Depth Adjustment Tool Free
Dry Fire Lockout false
Exhaust Fixed
Fastener Diameter Range .113 to.131″
Length 2 to 3-1/4″
Firing / Acutation Mode Tool Free Selectable Trigger
Jam Clearance Yes
Magazine Angle 30 Degree
Magazine Capacity 75.0
Magazine Loading Rear Load
Nail Diameter .113 to.131″
No Mar Pad true
Nail Diameter Range .113″ to.131″
Nail Lengths 2″ to 3-1/4″
Collation Type 30 degree paper Tape stick
Operating Pressure 70 – 120psi
Grip Slip On
Power Source Pneumatic
Tool Height 12.5″
Tool Length 17.5″
Tool Weight 7.6lbs
Tool Width 4.75″
Trigger Lock-Off false
Features
Compact design for tight jobsite applications
– Powerful enough to drive into engineered lumber
– Tool-free depth of drive adjustment for framing and sheathing applications
– Selectable trigger for easy change between sequential and contact modes
– Tool-free adjustable rafter hook for safety and convenience
– internal air filter helps prevent jobsite debris from entering engine
