Innovation For The Trades. The 20V MAX* XR® Brushless Cable Stripper is a dedicated, powered tool for cleanly and consistently stripping electrical cable without an exposed knife. It quickly strips copper and aluminum cable from 6 AWG to 750 MCM CU and 900 MCM AL. Quick-release bushings and a reference chart are included to cover the range of cable diameters. Put down the blade and increase productivity with this innovative solution for large diameter cable stripping.
Aluminum Capacity5 AWG to 900 MCM
Cable TypeTHHN CU, XHHW CU, THHN AL, XHHW AL
Copper Capacity6 AWG to 750 MCM
Depth of Strip4″
LED LightYes
Power Tool TypeCordless
System20V MAX*
Tool Height6.95 in
Tool Length10.39 in
Tool Weight2.4 lbs

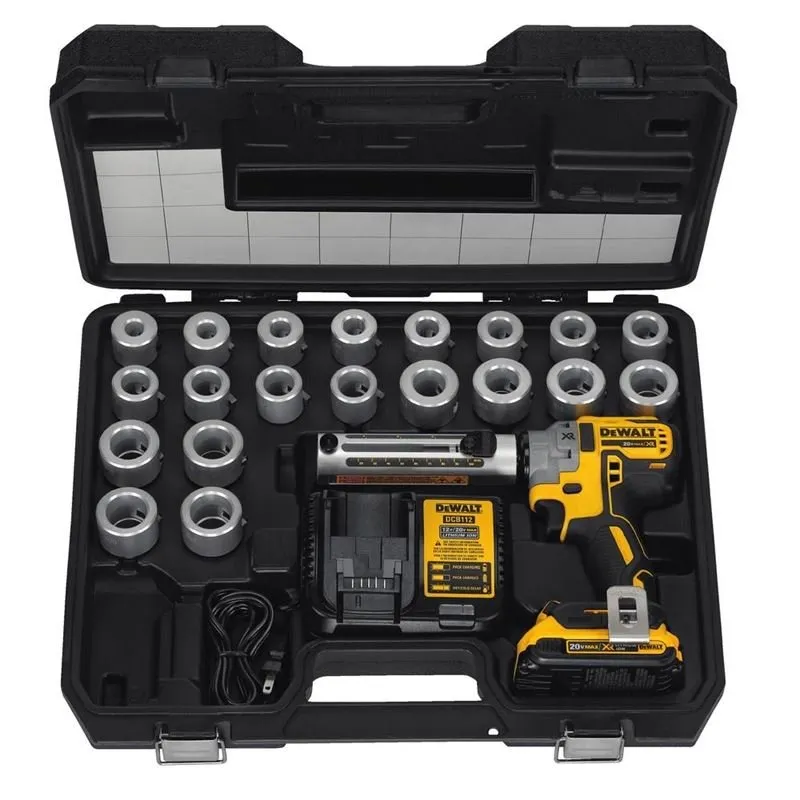

Includes
DCE151 Cable Stripper
(1) DCB203 2 Ah battery
Charger
Bushings DCE1513-DCE1522
Kit box
Features
Depth gauge consistently strips cable up to 4 in.
Strip #6 – 750 MCM Cu/Al Cable
Included quick-release bushings allow you to quickly change bushings for each cable size
Variable speed trigger with reverse for speed control
Adjustable onboard LED light helps to provide illumination in dark or low light situations
Kit box comes with convenient storage for tool, bushings, battery and charger
E-Clutch system helps the user maintain control of the tool if it becomes jammed.
Using appropriate bushing, cable stripper works on both (THHN/XHHW) copper and aluminum cable, covering a range in size from 6 AWG to 750 MCM CU and 900 MCM AL
